CommScope

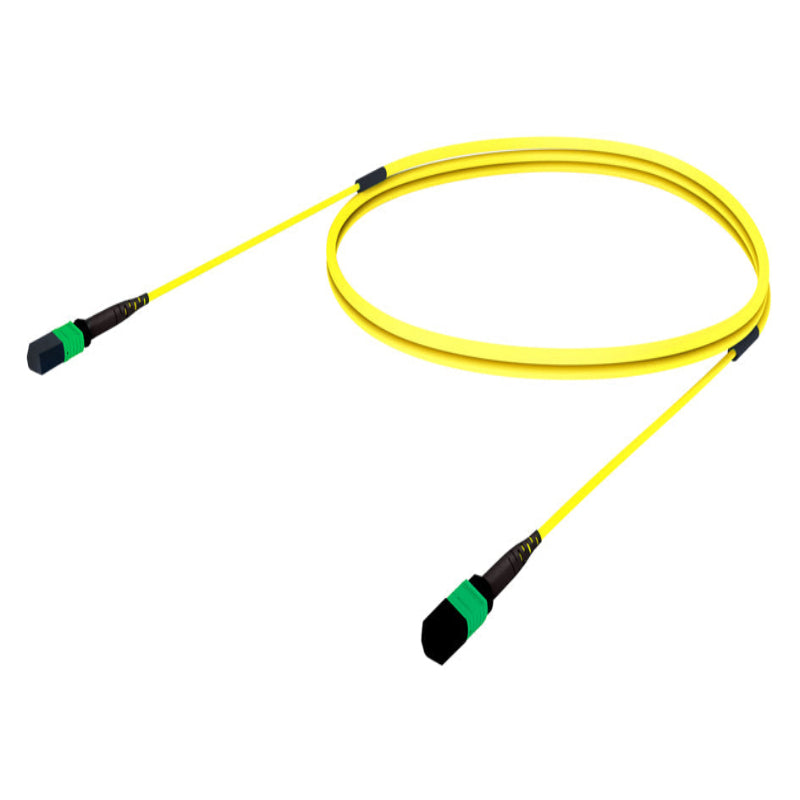

Singlemode MPO12 (Unpinned) to MPO12 (Unpinned), Fiber Trunk Cable Assembly 3m
SKU: CS-MPO-210 | MPN: AGGMPMPAD
Unit price excl. VAT
Sale
Sold out
Regular price
€549,26 EUR
Regular price
Sale price
€549,26 EUR
Unit price
per
Need expert advice?
Our product specialists are ready to help with specifications, product selection, or installation questions.
About CommScope Singlemode MPO12 (Unpinned) to MPO12 (Unpinned), Fiber Trunk Cable Assembly
Singlemode MPO12 (Unpinned) to MPO12 (Unpinned), Fiber Trunk Cable Assembly, 12-Fiber, Method A, Plenum, 3, m, J - Yellow, A - 33 inch breakout.
Specifications
General Information
BrandCommScope
Manufacturer Part NumberAGGMPMPAD
Product TypeTrunk
Warranty1 year
Cable Construction
Assembly TypeTrunk
Jacket MaterialOFNP
Jacket ColorYellow
Furcation ColorYellow
Cable Diameter3.0 mm
Connector & Interface
Connector TypeMPO
MTP/MPO StandardMPO IEC 61754-7-1
Connectors Side A1
Connectors Side B1
Connector A GenderFemale
Connector B GenderFemale
Connector A ColorGreen
Connector B ColorGreen
Boot A ColorBlack
Boot B ColorBlack
Polish AAPC
Polish BAPC
PolarityType A
Cable Retention Strength50 N @ 0° / 19.6 N @ 90°
Performance
Fiber ModeSinglemode
Fiber TypeOS2
Fiber Count12
Fibers per Connector Side B12
Insertion Loss A · Max≤0.35 dB
Insertion Loss B · Max≤0.35 dB
Return Loss A · Min≥65 dB
Return Loss B · Min≥65 dB
Operating Wavelength1310nm, 1550nm
Environment & Compliance
Operating Temperature-10 °C to +60 °C
Certifications
Meets strict international safety and quality standards.
